"WICO" Igniter Type 01
How to rewind a "WICO" Igniter type 01
![](wico001.jpg)

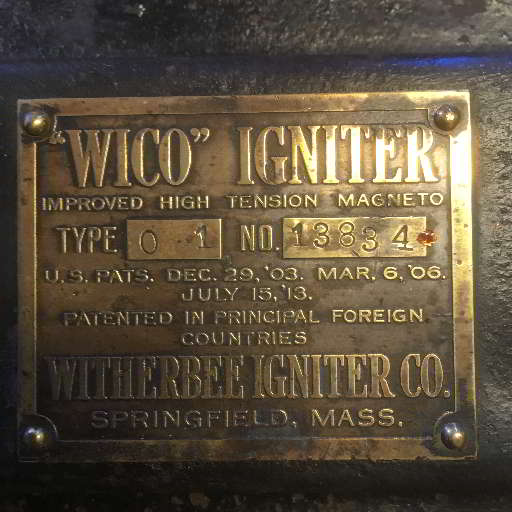

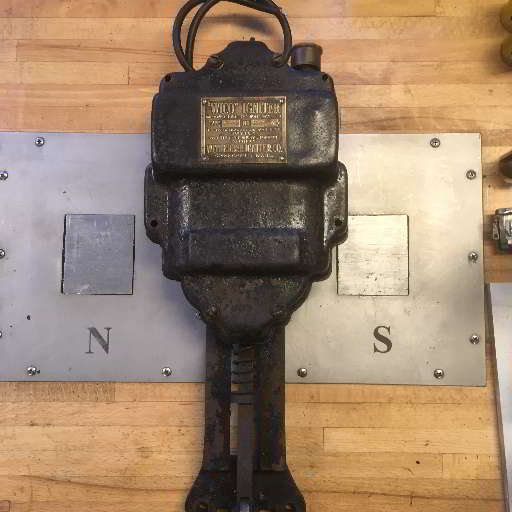

Improved high tension magneto
Den förbättrade högspänningsmagneten
![](wico030.jpg)
Gnistaren som saknar primärlindning och kondensator
The Igniter without primary winding and capacitor
![](wico002.jpg)

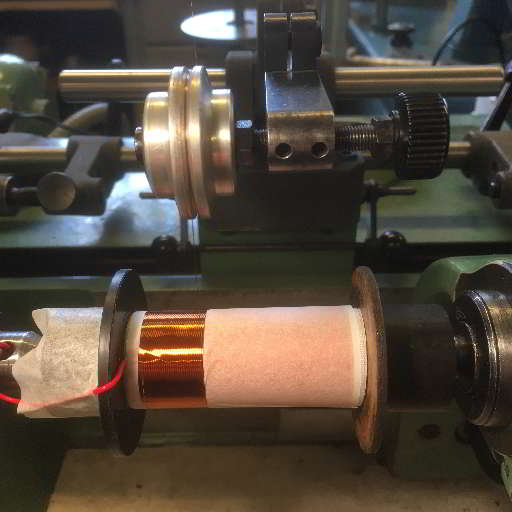

Behövde två nya spolar
Needed two new coils
![](wico008.jpg)
Med 14500 varv 0,15 mm koppartråd på varje spole

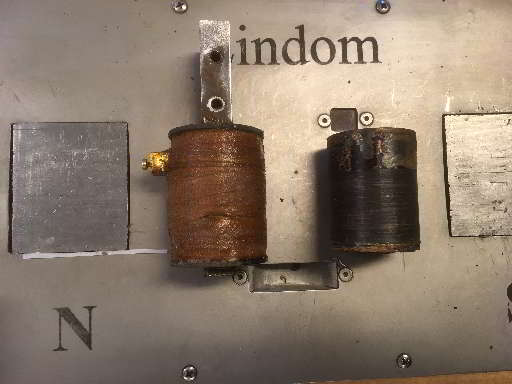

Nytillverkad till vänster, förlaga till höger
With 14500 turns 0.15 mm copper wire on each coil
Newly crafted to the left, model to the right
![](wico004.jpg)

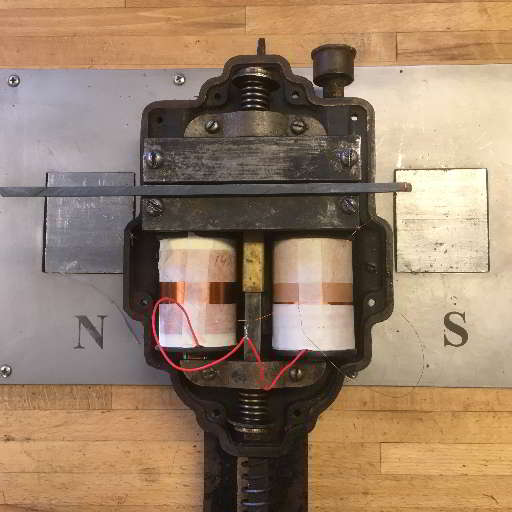

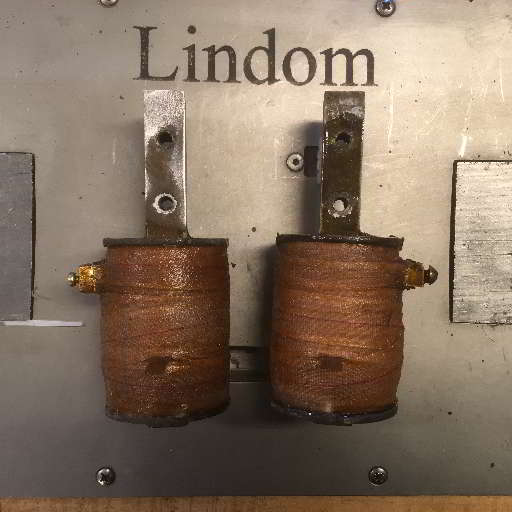

Provmonterade
Test assembled
![](wico006.jpg)
Sammanlagt 29000 varv 0,15 tråd
A total of 29000 turns 0.15 copper wire
![](wico011.jpg)

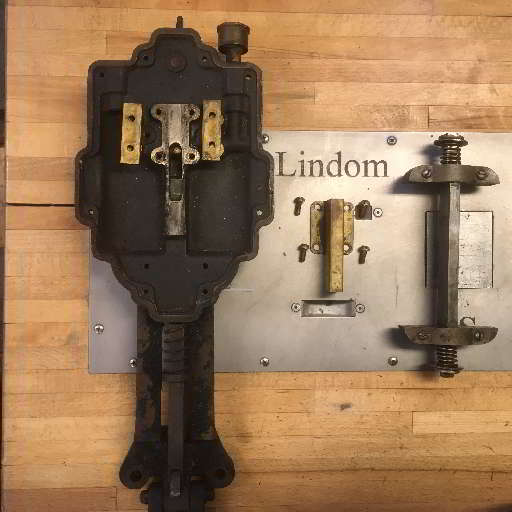

Dags för montering
Time for assembly
![](wico013.jpg)
Manöverstång och impulsmekanism
Maneuvering lever and impulse mechanism
![](wico014.jpg)

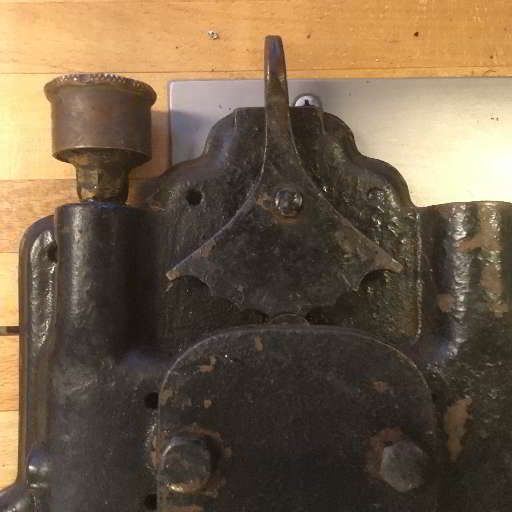

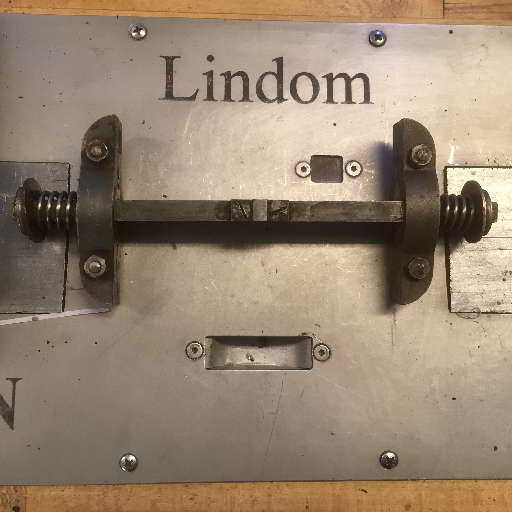

Inställningsmekanism för impulsens slaglängd
Puls stroke setting mechanism
![](wico015.jpg)
Mekanismen som sluter och bryter magnetfältet
The mechanism that closes and breaks the magnetic field
![](wico016.jpg)

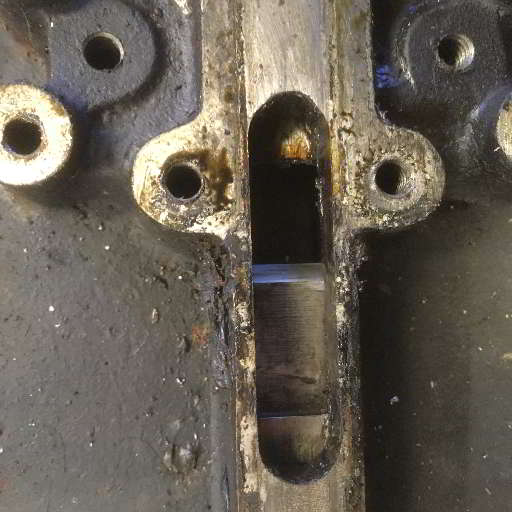

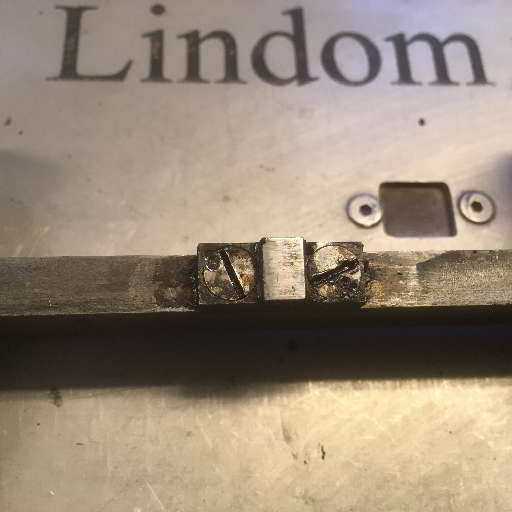

Klacken som hakar i manöverstången
The heel that clicks into the maneuvering rod
![](wico017.jpg)

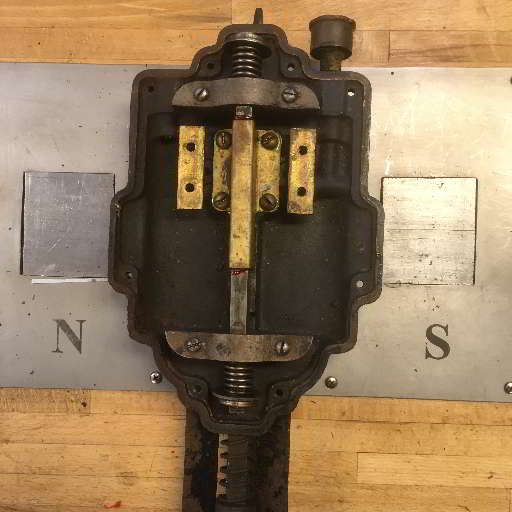

Mekaniken färdigmonterad
Mechanics completed
![](wico019.jpg)

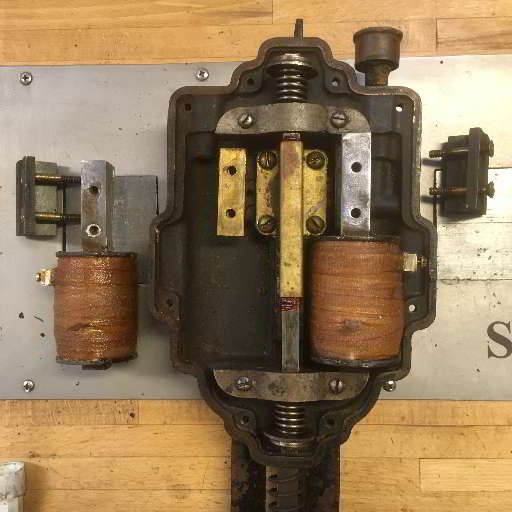

Första spolen monterad
First coil mounted
![](wico020.jpg)
Och den andra
And the other
![](wico021.jpg)

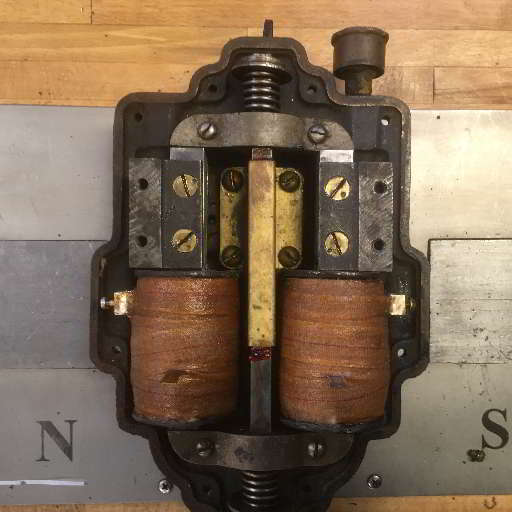

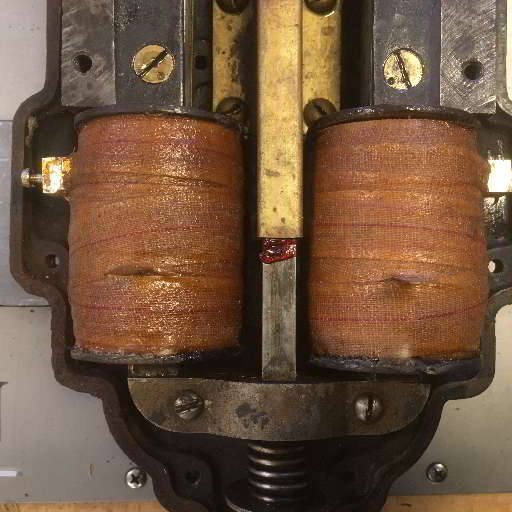

Paret på plats
The couple in place
![](wico022.jpg)

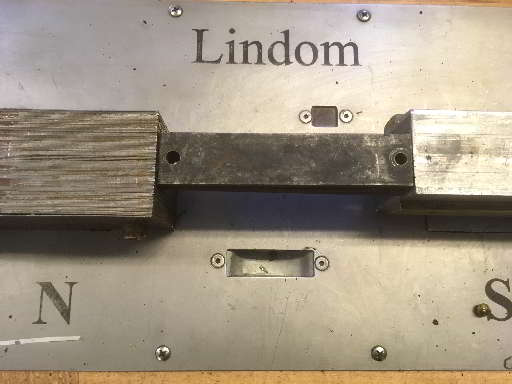

Magnetisering
Magnetizing
![](wico024.jpg)

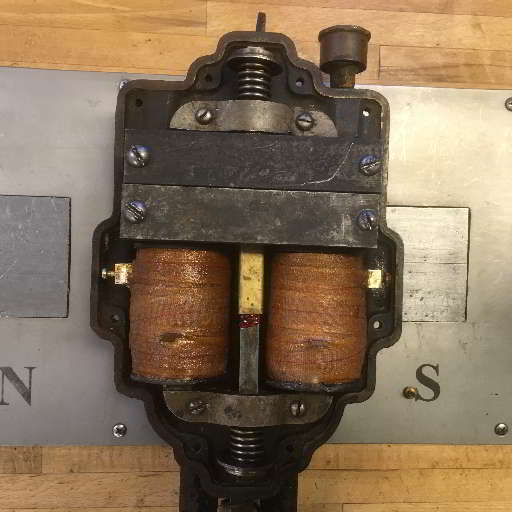

Magneterna monterade
The magnets mounted
![](wico026.jpg)

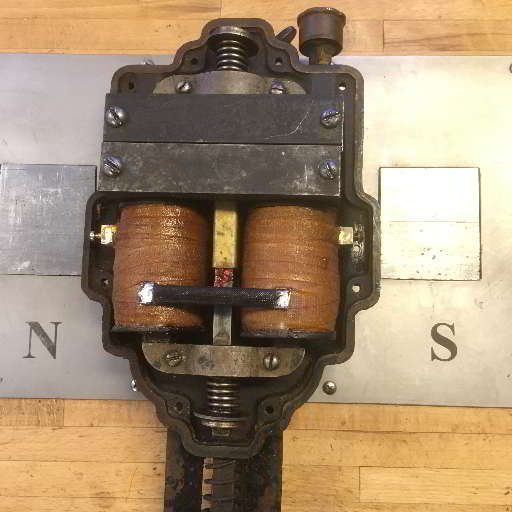

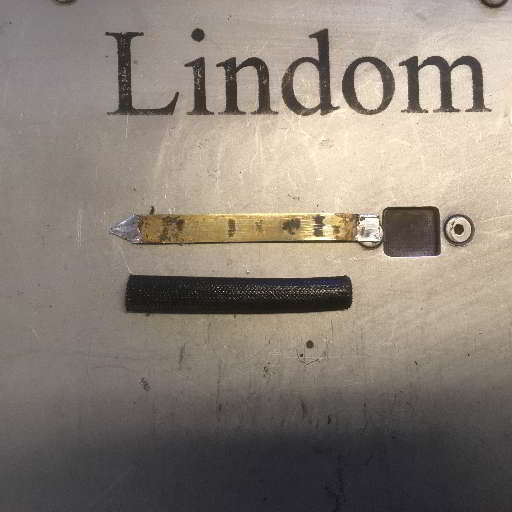

Elektrisk förbindelse
Electrical connection
![](wico027.jpg)
Paret sammanfogat
The pair joined
![](wico028.jpg)

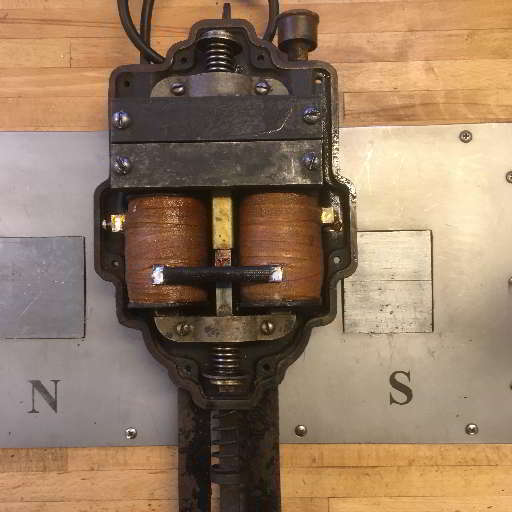

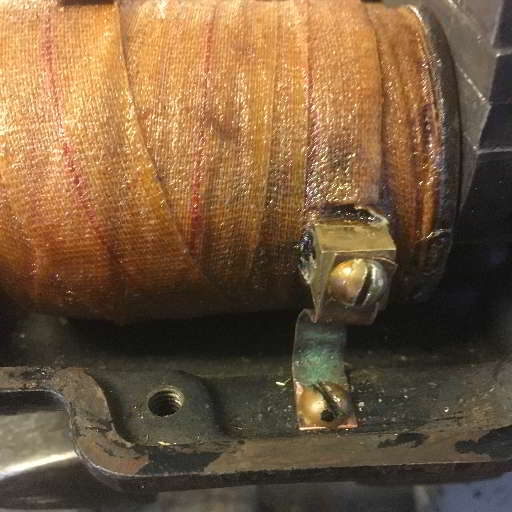

Stadig jordförbindelse
Constant grounding
![](wico029.jpg)
Klar för provkörning
Ready for trial run
